- NewsNew Products from CLM Bearing Co., Ltd.
ABEC9/P2 & ABEC7/P4
Handpiece Bearing
CLM Bearing has reached the world highest grade level ABEC-9/P2 and ABEC-7/P4.
The speed of revolution is up to 400,000~450,000rpm and we guarantee 1 year warranty.
CLM Bearing produce hundreds of cartridge bearing models applied for plenty of hand-piece brands, such as Bien Air, KAVO, NSK,MIDWEST,SIEMENS, W&H, STAR DENTAL,CASTELLINI,LARES,SIRONA, etc.
Who We Are
Shanghai CLM Bearing Co., Ltd.
Company Profile
Shanghai ChiLin Machinery & Bearing Co., Ltd.(CLMB ) is one of the most advanced suppliers globally which offer all types of bearings and consumable. CLMB produces bearings of ID from 0.6mm~45mm that is able to meet the highest international standard of ABEC-9/P2. The products feature high precision, high speed, high sensitivity and long life span, which is widely be applied in aerospace, automobile, robot, optical, medical equipment and home appliances. With outstanding quality, our bearings ever support national spaceship, and Lunar exploration program. The company owns a group of knowledgeable engineers and professional crafts workers in R&D, technique research, measurement testing, which bring us a numbers of national invention and utility model patents.
QC Management
CLMB Quality control management system is certified ISO 9001: 2008.To ensure the quality of raw material and original components imported, we hired professional the other party, such as BV to inspect the bulk locally.To inspect the accuracy of our bearings, we equipped vibration analyzers, noise measuring devices, and dimensional examination systems.To ensure the correct amount for each bearing re-lubricates, we also have digital lubrication and weighing systems.
Products
Dental Bearing
For handpiece repair shops and manufacturers with very competitive price. Dental ball bearings for dental handpieces come in many shapes and sizes. Many low-speed Dental Handpiece Bearings only require standard type cages. We recommend Stainless Steel and at least P6 precision for these applications.
High Precision ceramic dental bearings usually have a synthetic cage. High-speed handpiece bearings are generally at least ABEC-7 precision, and often have modified internal design.
Ceramic Bearing
Download Catalogue
We have lots series ceramic ball bearings in stock, all the items included under this category are in stock. Ceramic bearings have electrical and magnetism resistance, wear and corrosion resistance, lubrication and maintenance free. In the world of low-friction, what could be better?
Silicon nitride, silicone carbide and zironium Oxide rings and balls, PTFE, PA66 and PEEk retainers. We were the first to have introduced the sealed full ceramic bearings, seals can be rubber seals or PTFE closures. Any size can be manufactured according to your specs, minimum quantity is 30, delivery between 30 and 60 days, just decide if you want your item sealed or open and the material of the inner ring, outer ring, balls and cage.
Miniature Ball Bearings
Download Catalogue
Miniature Bearing as a special deep groove ball bearing be listed seperately:
Metric series: 60**,62**,63**,67**,68**,69**,.And MR115**,MR117 **,MR74**,MR52 **
Inch R series: R144**,R166**,R188**,R2**,R6 **,R1970**, R2480**,SR4**, L-1150**, L-1470**,L-1790 **ect
Metric or Inch size with flange: MF74**, MF126**,MF83 **, F696**, F693**, FR3**,FR1-5**ect.
Tolerance : There are ABEC-1.ABEC-3.ABEC-5.ABEC-7 or P0.P6.P5.
And specifications of vibration(acceleration) or (velocity). Z1.Z2.Z3.Z4.V1.V2.V3.V4 ect.Types: no shields Open type, with two sheilds ZZ. 2RS.VV Or with one shield Z.. RS.V. OPN, OPNR,ZZN,ZZNR with stop-cut and rings.
In the deep groove ball bearings ,also have some special cage:

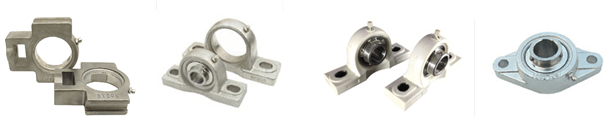

M (Brass cage). W( steel cage) . TN(plastic cage). V (no cage)Pillow Block Bearings
Download Catalogue
The single surface of sphere outside the row deep ditch ball bearings and a bearingses that outside surface of sphere takes a bearings to be take by a both sides to seal completely the turns constitute, being applicable to the simple to accept, having low request to the manufacturing and the gearing accuracies of the host, installing to dismantle to unload the convenience, various machine equipments of extensive applied month, be applicable to the farm machinery, metallurgy machine, spin and weave the machine and print and print to dye particularly, food, building materials, porcelain and ceramics etc. is various to transport the equipments.
200 or 300 series .
SC200 **, SB200 **, UC200**, HC200**, UK200**, UC300**, SA200**, SER200 **, UCP200**, UCF200**, UCT200**, UCFL200**, UCPA200**, UCFC 200 **,
SBPF200 **, SBPFL 200 **, SBPP 200 **Needle Roller Bearings
Download Catalogue
Needle rollers bearing can bear greater radial load and there are ones with inner ring and without inner ring. G2 needle rollers are installed, the tolerance of the average diameter is within 2um. Rigidity holders are adopted to correctly lead the needle rollers to be parallel with the axes.
Main Structure Style.
These products are used for various go-carts, NC machines, sewing machines, fitness equipments, cars, motors, electric tools, entertainment tools, textile and printing machines, etc.
Where We Export
United States, Canada, Australia, Russia, Britain, France, Germany, Italy, Spain, Poland, Turkey, Brazil, Argentina, Peru, Colombia, South Africa, Japan, Korea, Taiwan, the Philippines, Malaysia, Indonesia, etc.
What We Do
Best Service with Quality Guarrantee
Manufacture & Customize
CLMB produce a wide range of high quality precision bearings. Except for standard bearing manufacture, we also provide customize service with high standard and specific design of bearings as well as its package.
Engineering Support
During the design engineering, prototyping, and testing, CLMB offers engineering support of bearing solution through every stage of the product development process.
Quality Inspection
We equipped rigorous bearing performance testing system to assure the quality that meet your specific requirements.
Worldwide Delivery
Meet your international shipping needs with guaranteed time-definite worldwide delivery based on your shipment's destination.
After-Sales Service
Believed our quality nevertheless, we reserve the right of return and exchange if our bearings have any quality problem within the warranty period.
Distributor
Are you still bothering with no warehouse for goods?
no money for stocking?
Or no time for delivery?
Never mind, CLMB will help you overcome all these odds.
Welcome you to be our dealer who will never worry about over-stock and freight cost. Only if you’re excellent at marketing, you’ll have an experienced factory partner, ready warehouse, skillful worker, discount freight, which will save your time and money. Contact us if you’re interested in it.
